778VC Threaded Adjustable Thermostatic Balancing Valve with Check Valve and Ball Valves

SKU:
778VC

Additional Information

    Connection:
    NPT x NPT

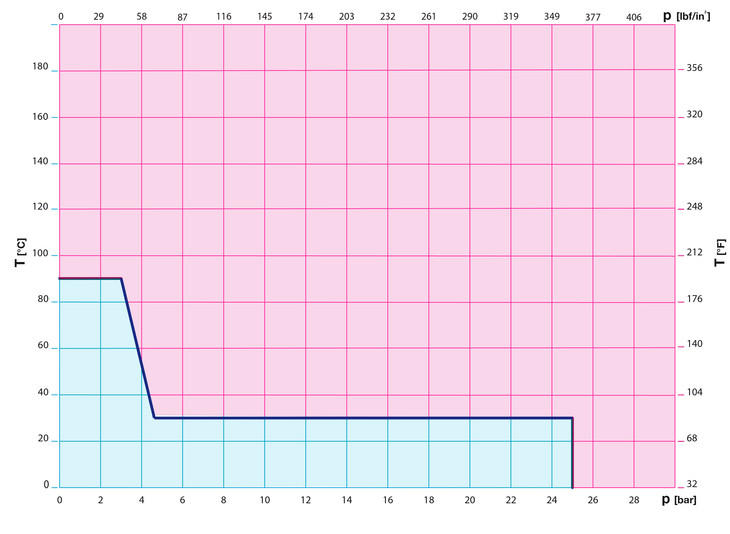

    Working Pressure:
    360 PSI
    Max. Operating Temp:
    15° F to 200° F
    Certification:
    NSF/ANSI 61 Certified
    Feature:
    Anti-Legionella Disinfection Bypass
    Includes:
    2 Ball Valves and 1 Inline Check Valve

Video

Product Description

Adjustable Thermostatic Balancing Valve with Anti-Legionella Disinfection, Threaded Connections, (2) Ball Valves and Inline Check Valve

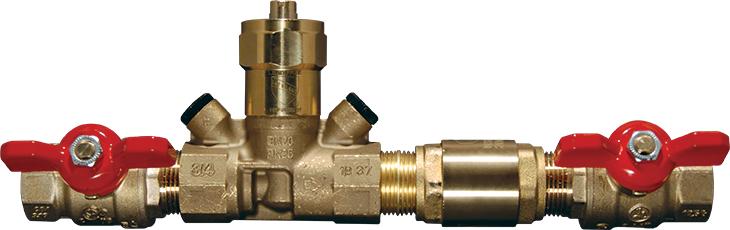

The Cim 778VC thermostatic balancing valve is a device used in domestic hot water recirculation systems to control and maintain the desired temperature at each point in the system. It features an integrated thermostat that can be easily adjusted with a slotted screwdriver, and a by-pass mechanism for thermal disinfection against Legionella. The valve can be installed in the return line of each zone, is no-lead and NSF/ANSI 61 certified, and made of corrosion-resistant brass. It also comes with optional accessories like temperature gauge and/or binder points. The valve can be adjusted without needing to remove it from the system and it has a replaceable balancing mechanism. The bypass mechanism permits thermal disinfection with high water temperatures to kill bacteria and viruses, especially Legionella bacteria and other waterborne pathogens that can be found in engineered water systems. The 778VC includes two ball valves to isolate the balancing valve allowing faster labor and inline check valve.

Based on NSF/ANSI 61-2008 Annex G in compliance with Section 116875 of the California Health & Safety Code.

All Cimberio valves qualify for the American Recovery and Reinvestment Act and the Buy American Act.

Features:

  • Adjust Temperature without Removing Valve from the System
  • Perform Thermal Disinfection to Prevent Waterborne Pathogen such as Legionella without Removing the Valve from the System
  • No-Lead & NSF/ANSI 61 Certified
  • Corrosion-Resistant Brass
  • Optional Accessories: Temperature Gauge and/or Binder Points
  • Replaceable Balancing Mechanism
  • Includes 2 Ball Valves to isolate the balacing valve
  • Inline Check Valve

Downloads:

Part Numbers
1/2" 778VC-04
3/4" 778VC-06
1" 778VC-07
